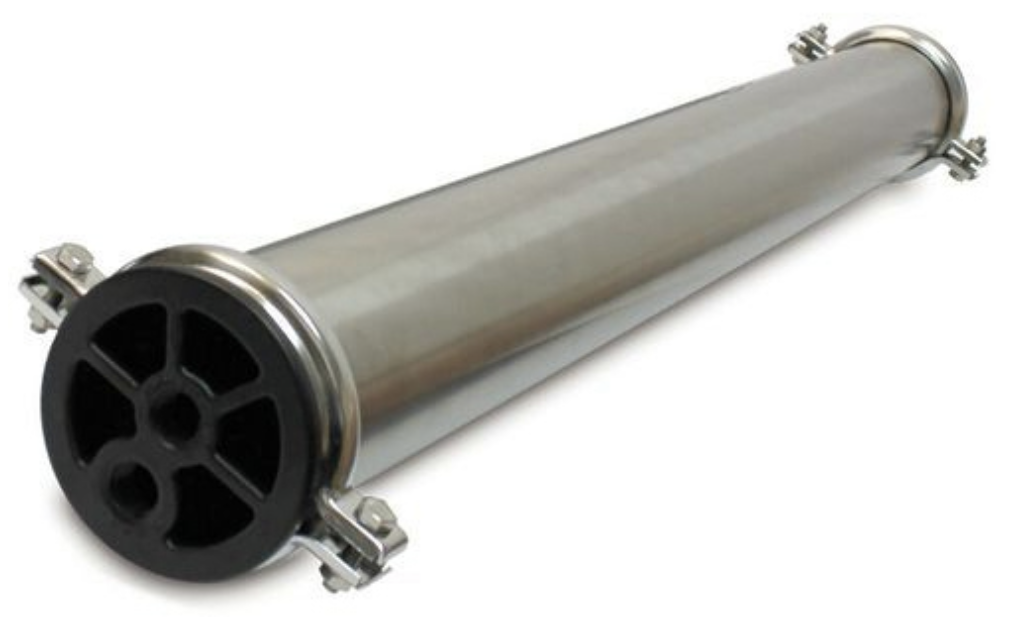

SS - Series 4" x 40" Stainless Steel Membrane Housing with 1/2" FMPT Ports

Core Water Systems, SS-Series 4" x 40"  Stainless Steel Membrane Housings are for durable and long-term use.   SS-series Membrane Housings are seamless and accommodate all standard 4" x 40" Membrane elements and feature a True-Clamping System for added security.

These membranes replace both the CWS-100 and CWS-200 water system membranes and are also compatible with IPC, Tucker, RHG, WRC brand systems.

      FEATURES

• 304L Stainless Steel Construction
• End Entry Connections
• Single Piece Nylon End Plugs
• True-Clamp Integrated Locking System
• High Resistance to Climate Conditions
• Easy to Remove End Plug for Ease of Installation and Maintenance
• Accommodates all Standard Sized Membrane Elements

      OPERATING LIMITS

• Maximum  Operating  Pressure (PSI /Bar) 250 / 17
• Minimum Operating Temperature ( F / C) 35 /2
• Maximum Operating Temperature ( F / C) 120 / 49
• Maximum Feed water TDS Chlorides (ppm) <250
