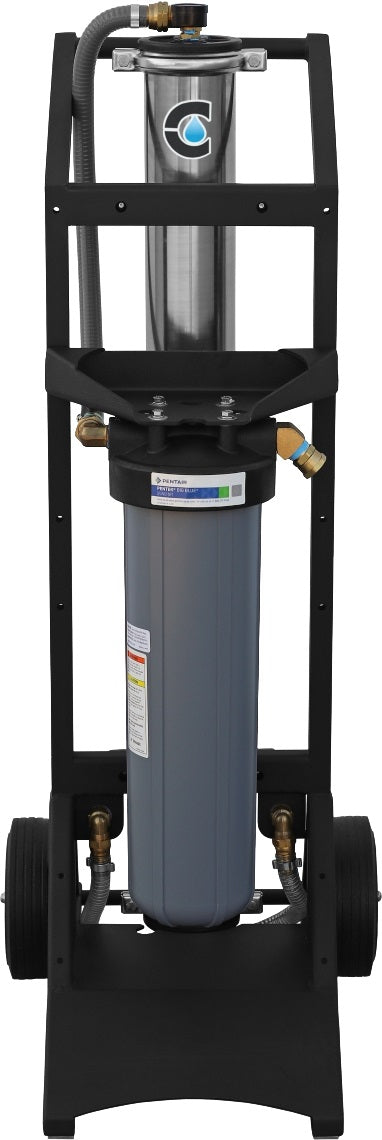

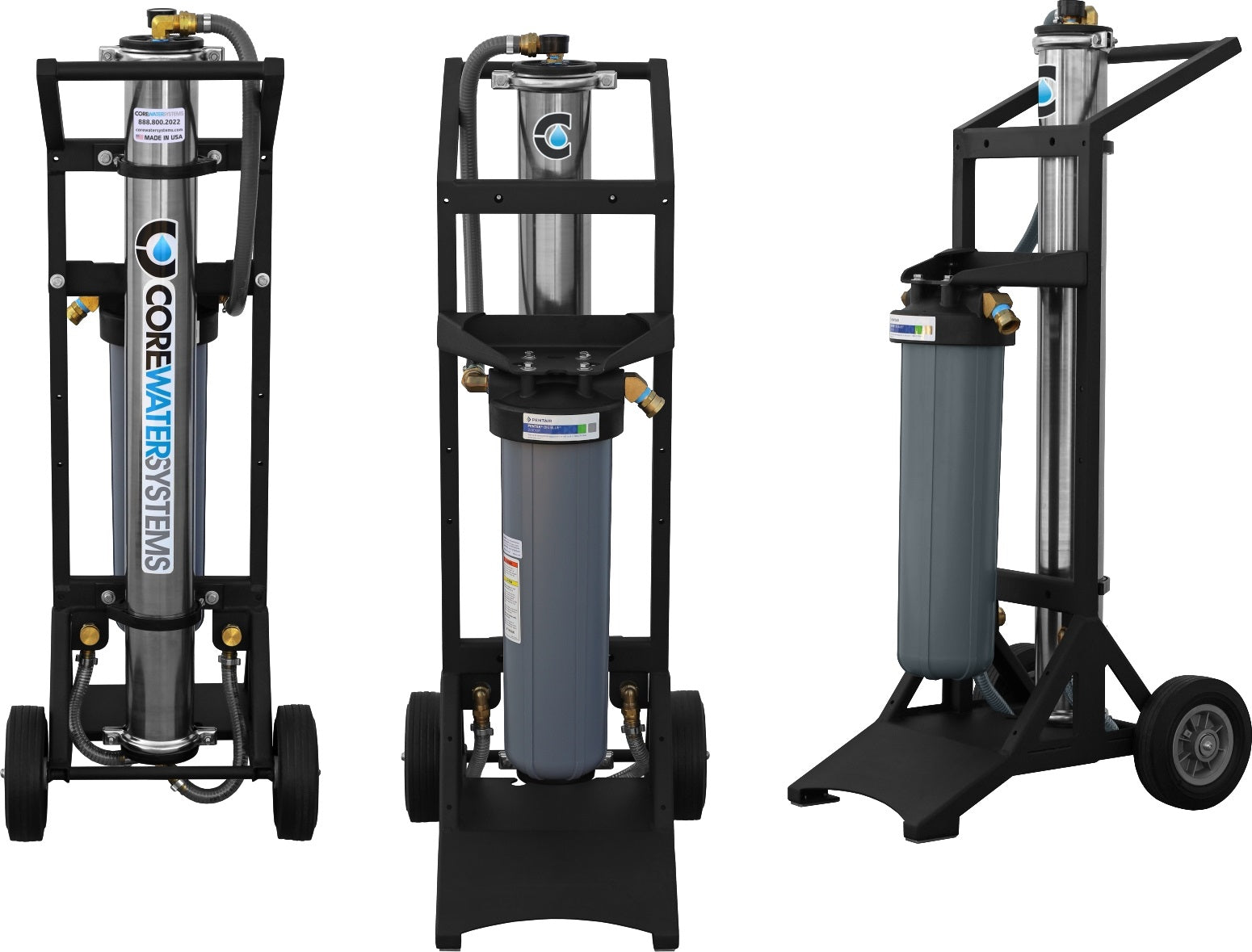

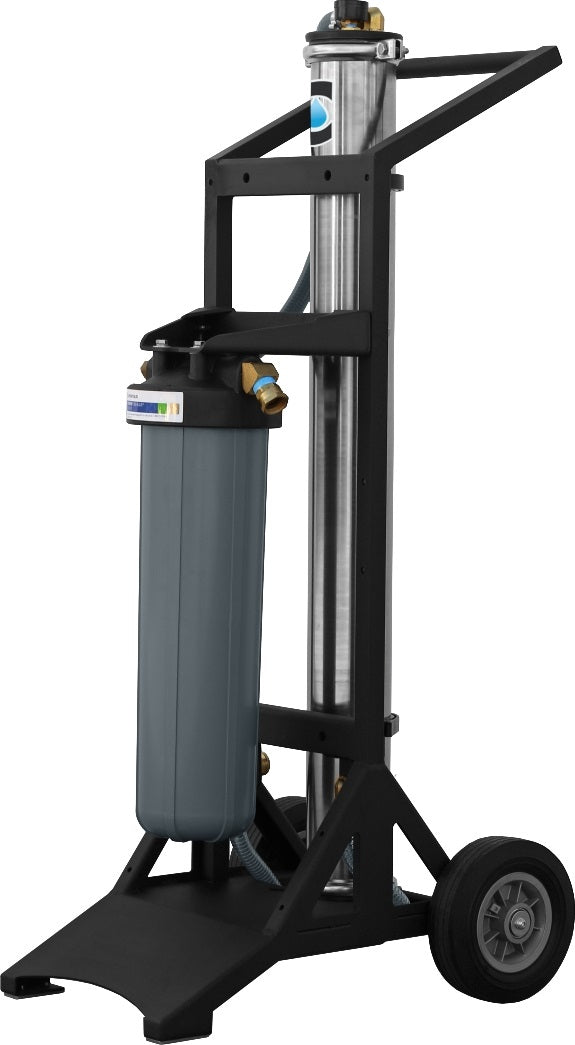

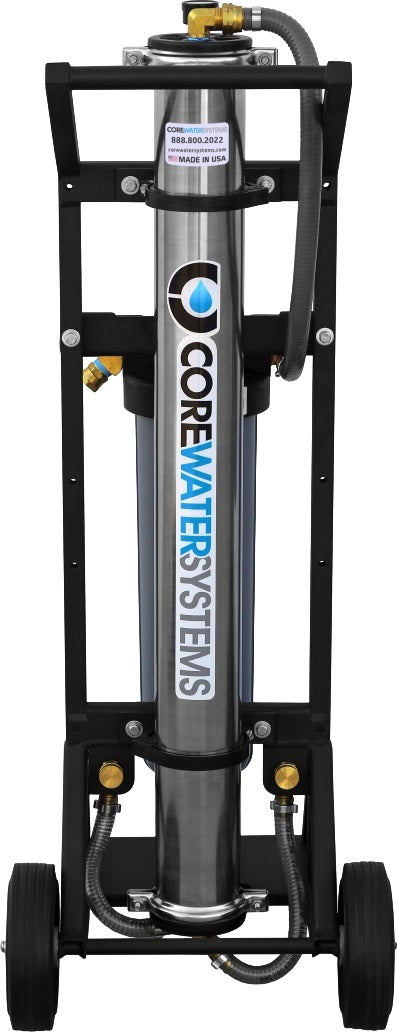

The CWS-100 is a durable compact and portable spot free water production system engineered to process up to 39,000 gallons of water and produces ultralow TDS spot free water before having to replace the carbon block filter at minimal cost. The life expectancy of the membrane element is 3 to 5 years when recommended maintenance is followed.

The production capacity ranges up to 2500 gallons per day, depending on incoming water pressure. Our compact portable design allows for ease of mobility and can be connected to a water storage tank and then used in conjunction with a pressure washer as needed.

The CWS-100, spot free water system operates off normal tap water pressure and filters water by reverse osmosis and does not use Deionization (DI). Reverse Osmosis water is the least expensive to produce per gallon, and leaves the best looking surface as opposed to DI, which can dissolve waxes, etch or corrode metal surfaces, and cloud paint jobs. This product is excellent for professional automotive, marine and aviation detailing and car wash use.  Surfaces dry spot free without hand drying. Simply attach a garden hose and you are ready to produce 100% spot free water.

 Benefits

  • Produces 100% Spot-Free Water
  • Low Operation Costs
  • No Electricity Required
  • Portable Modular Design
  • Easy to Maintain and Service
  • Environmentally Safe
  • Quick Return on Investment
Standard Equipment

  • Industry Leading 4x40 Membrane Element
  • Industry Leading 4.5x20 Carbon Block Filter
  • On board Gallon Totalizing Meter
  • 0-100 Pressure Gauge
  • Handheld Electronic HM Digital TDS Meter
  • Powder coated Aluminum Frame



Operating Parameters

Product Flow 0.8 GPM 1 GPM 1.4 GPM
Drain Flow 3 GPM 3 GPM 3 GPM
Feed Pressure 45 PSI 60 PSI 80 PSI
4.5"x20" Carbon Block Life 39,000 Gallons 37,000 Gallons 35,000 Gallons
Connections Feed 3/4" Product 3/4" Drain 3/4"
Dimensions 2.0"L x 18"W x 4.0"H
4"x40" Membrane Element Life Expectancy 3-5 years
Test Parameters Feed TDS 425 PPM Typical Rejection 98.5% Typical Product TDS 7.8 PPM
